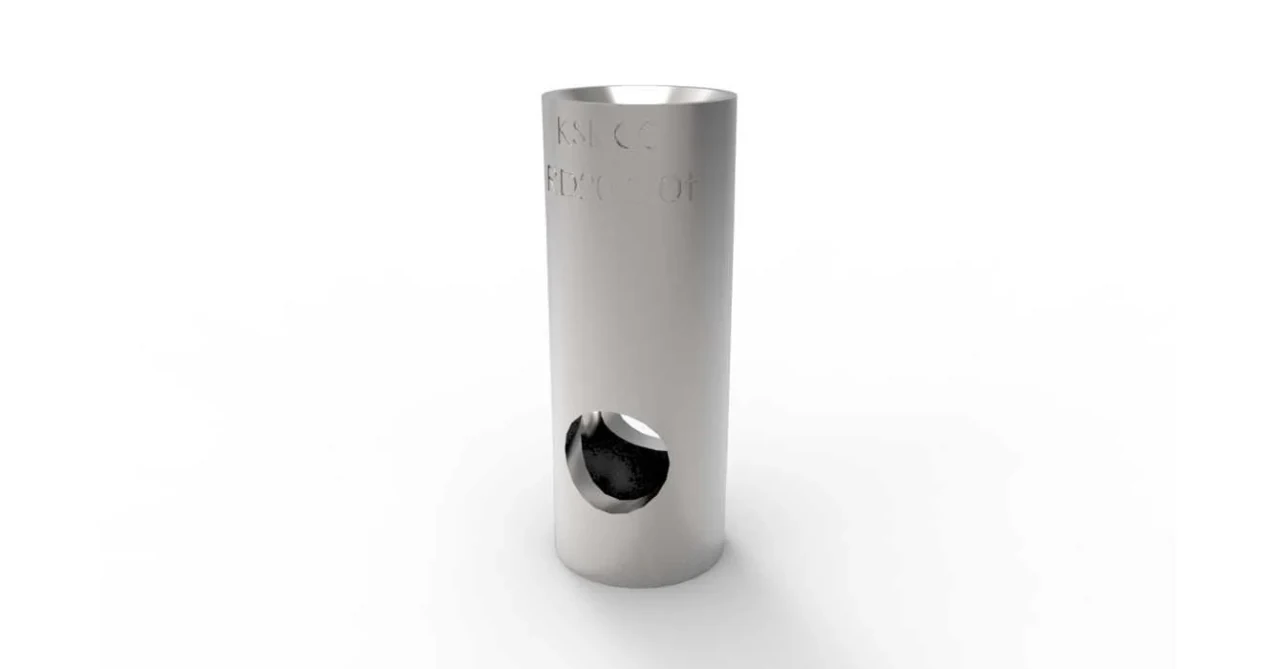

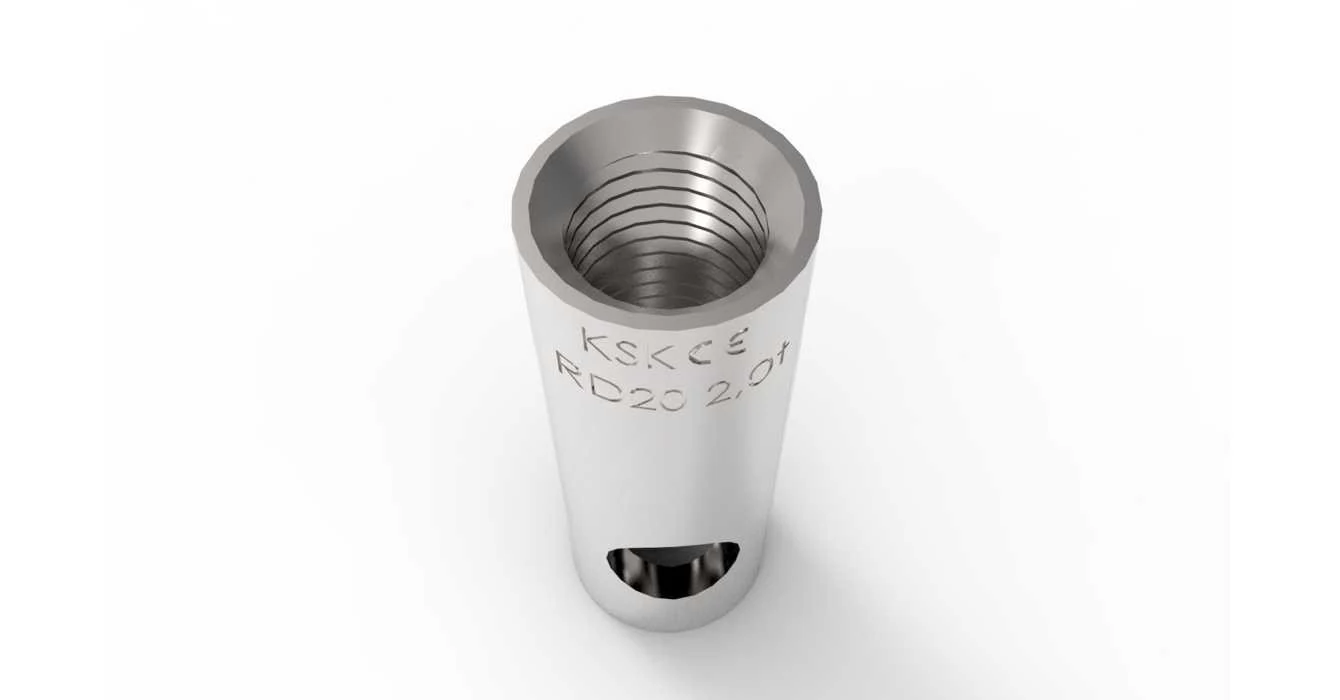

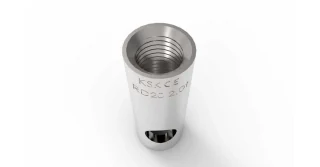

These sleeves, since they are small, are suitable for almost all types of prefabricated units. An Rd thread is made in a galvanised, chrome-plated or high-grade stainless steel sleeve. The thread should be lubricated with oil before installation. In order to prevent dirt or concrete from entering the thread we recommend using a plastic cap. In the case of a steel formwork, we recommend using a magnetic system.

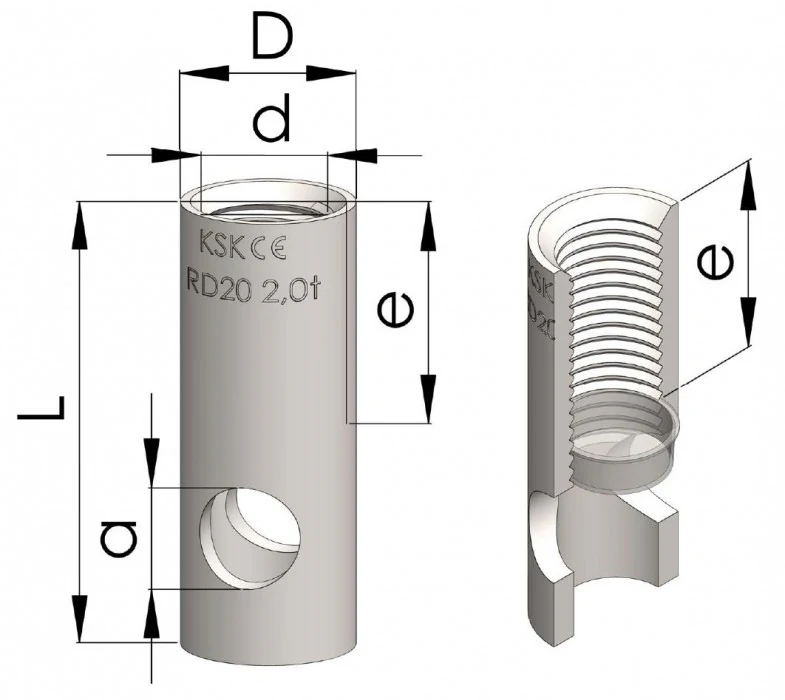

Table of sizes| index No. | load-bearing capacity category [T] | thread d × length L | D mm | a mm | e mm |
| 0050 | 0,5 | Rd 12 x 43 | 15 | 8 | 22 |
| 0052 | 0,8 | Rd 14 x 54 | 18 | 11 | 25 |
| 0054 | 1,2 | Rd 16 x 59 | 21 | 13,5 | 27 |
| 0056 | 1,6 | Rd 18 x 67 | 24 | 13,5 | 34 |
| 0058 | 2,0 | Rd 20 x 72 | 27 | 16 | 35 |
| 0060 | 2,5 | Rd 24 x 84 | 31 | 18 | 43 |
| 0062 | 4,0 | Rd 30 x 112 | 39,5 | 22 | 56 |
| 0064 | 6,3 | Rd 36 x 135 | 47 | 28 | 65 |
| 0066 | 8,0 | Rd 42 x 146 | 54 | 32 | 75 |
| 0068 | 12,5 | Rd 52 x 170 | 67 | 40 | 90 |
* We reserve the right to make typographical errors. Technical modifications are possible without prior notice.í.
