Magnet with two M16 threads for attaching various adapters, suitable for fixing formwork. Simple and secure installation; the magnet and the structure are coated with anti-corrosion paint.
K-MAGNES

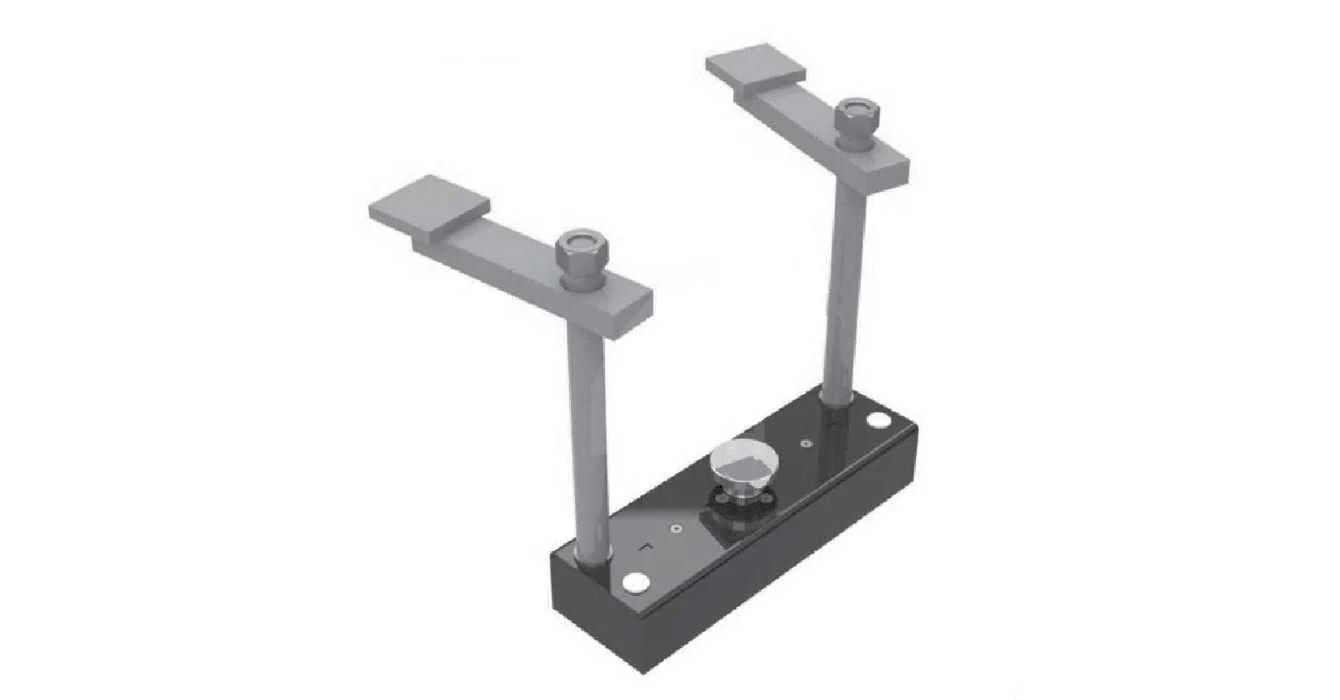

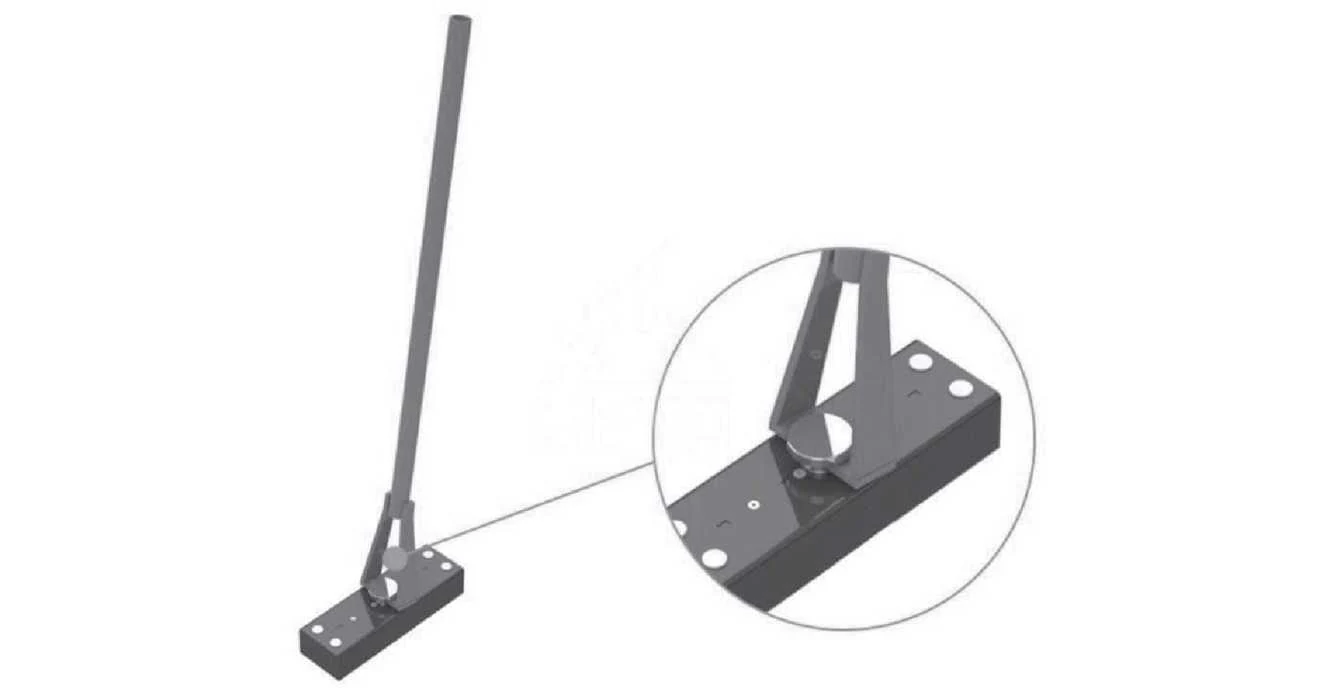

Příslušenství pro magnety typu SL a K

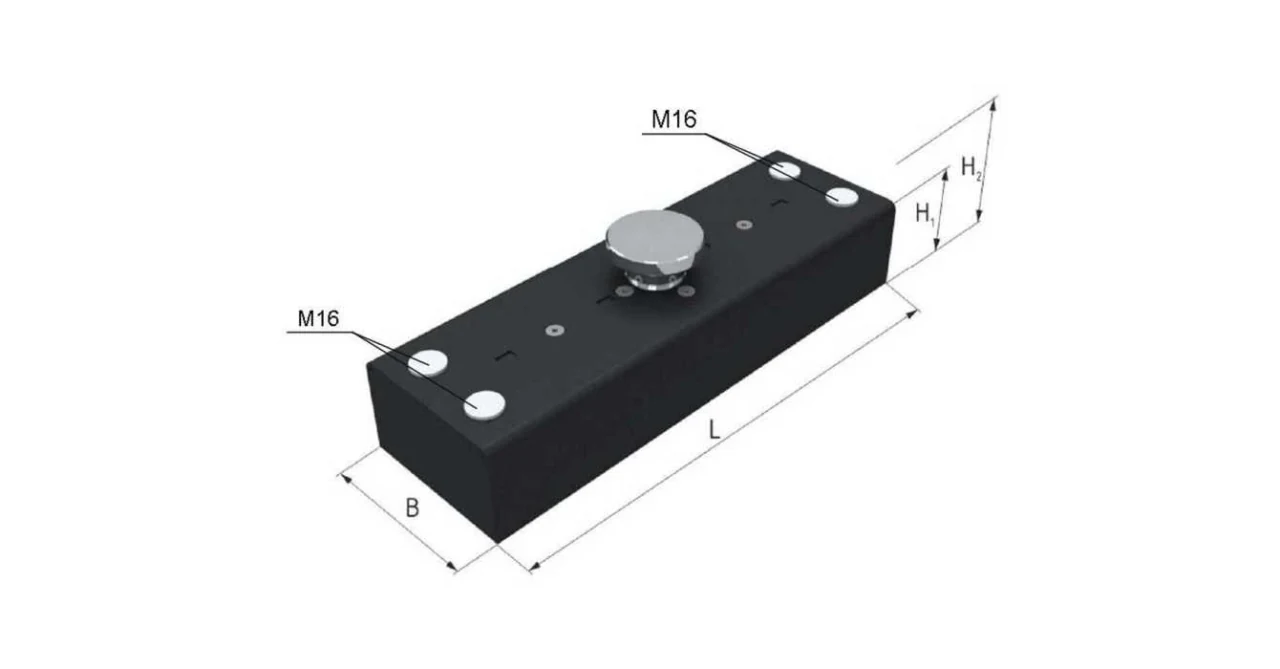

Table of sizes
| index No. | lifting force (N) | L (mm) | B (mm) | H1 (mm) | H2 (mm) | weight (kg) |
| K magnet S | 5000 | 200 | 70 | 60 | 85 | 3 |
| K magnet M | 9000 | 200 | 100 | 60 | 85 | 4,3 |
| K magnet L | 11000 | 320 | 70 | 60 | 85 | 4,9 |
| K magnet XL | 16000 | 260 | 100 | 60 | 85 | 5,9 |
| K magnet XXL | 21000 | 320 | 100 | 60 | 85 | 7,4 |
* We reserve the right to make typographical errors. Technical modifications are possible without prior notice.í.
