tolerance pro délku L do 1m je +1/-1cm, nad 1m je +2/-2cm

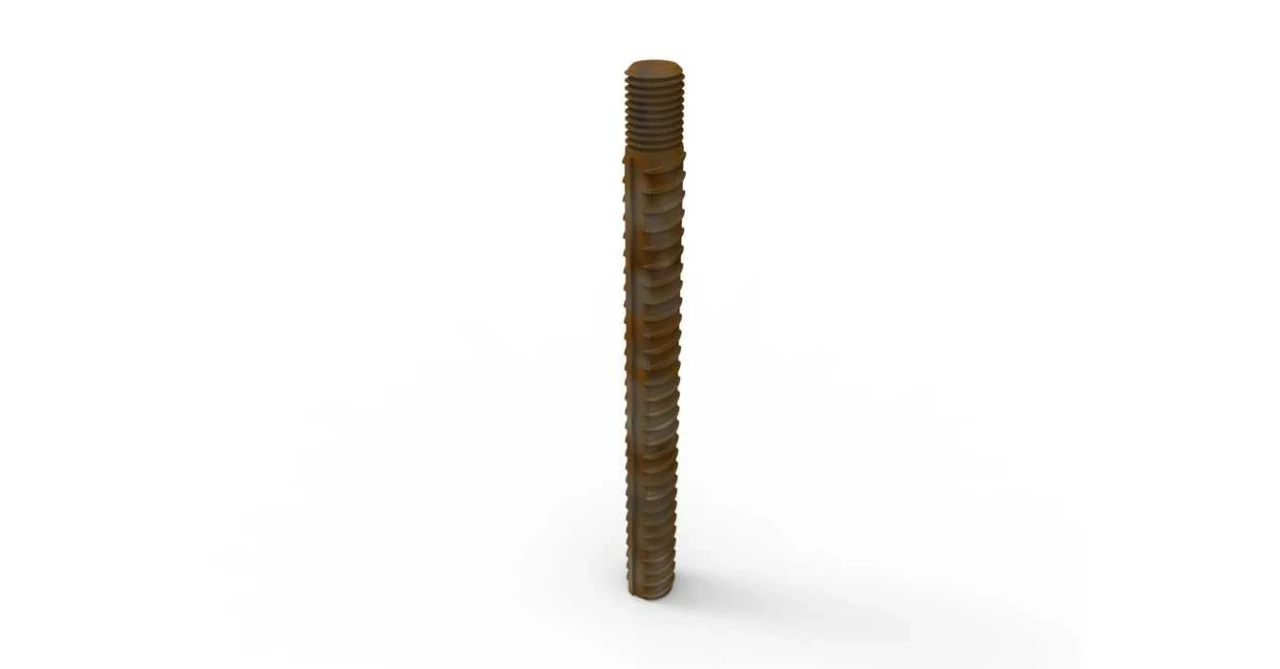

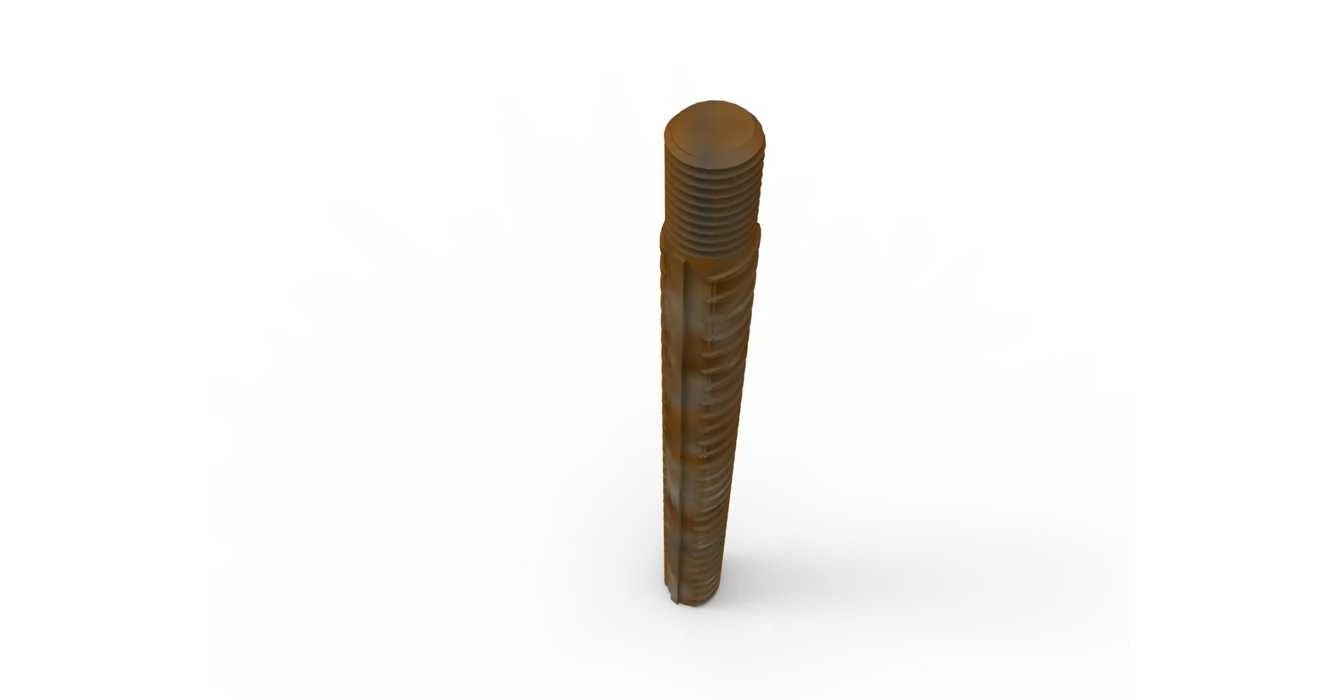

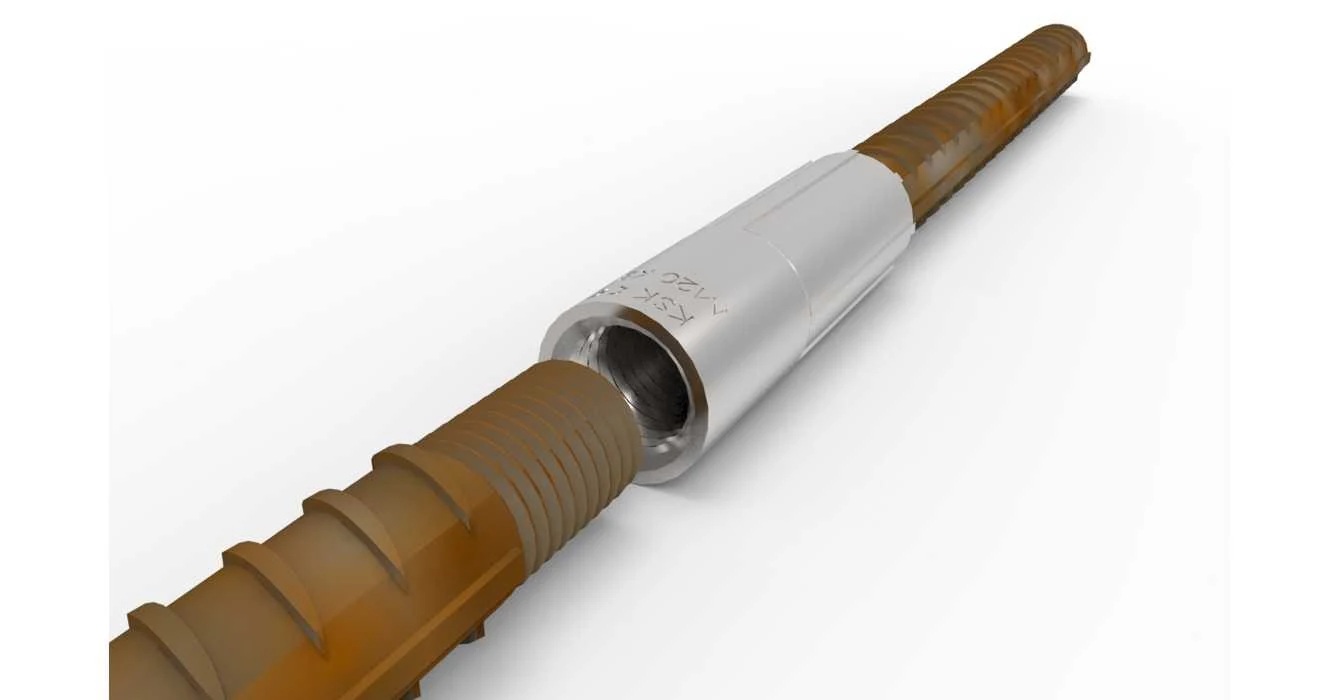

The linking items are made of ribbed reinforcing steel and equipped with a metric thread. The sleeve system consists of ribbed reinforcing steel and a sleeve clamped on, which also has a metric thread. The KBS system is divided into two basic groups: KBS1, where the thread and ribbed steel diameter is identical and KBS2, where the thread diameter is higher than the diameter of ribbed steel.

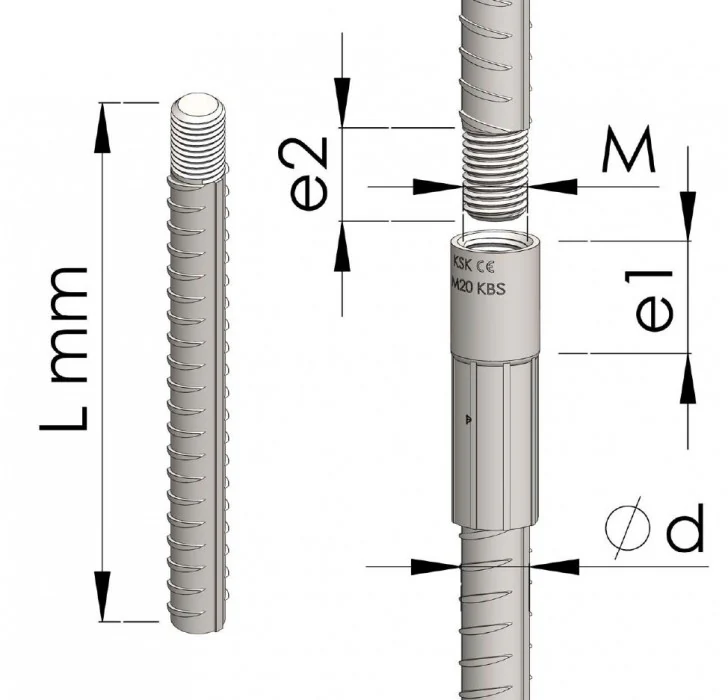

Table of sizes| index No. Type-A | thread | bar Ø mm | L mm | e2 mm |
| KBS1-A-12 / 400 | M12 | 12 | 400 | 16,5 |
| KBS1-A-12 / 610 | 610 | |||
| KBS1-A-12 / 860 | 860 | |||
| KBS1-A-12 / 1180 | 1180 | |||
| KBS1-A-12 / 1300 | 1300 | |||
| KBS1-A-14 / 400 | M14 | 14 | 400 | 19,5 |
| KBS1-A-14 / 700 | 700 | |||
| KBS1-A-14 / 990 | 990 | |||
| KBS1-A-14 / 1370 | 1370 | |||
| KBS1-A-16 / 400 | M16 | 16 | 400 | 22,5 |
| KBS1-A-16 / 1110 | 1110 | |||
| KBS1-A-16 / 1400 | 1400 | |||
| KBS1-A-20 / 400 | M20 | 20 | 400 | 28,5 |
| KBS1-A-20 / 800 | 800 | |||
| KBS1-A-20 / 1400 | 1400 | |||
| KBS1-A-25 / 400 | M25 | 25 | 400 | 36 |
| KBS1-A-25 / 800 | 800 | |||
| KBS1-A-25 / 1400 | 1400 | |||
| KBS1-A-28 / 400 | M28 | 28 | 400 | 40,5 |
| KBS1-A-28 / 800 | 800 | |||
| KBS1-A-28 / 1400 | 1400 |
* We reserve the right to make typographical errors. Technical modifications are possible without prior notice.í.
