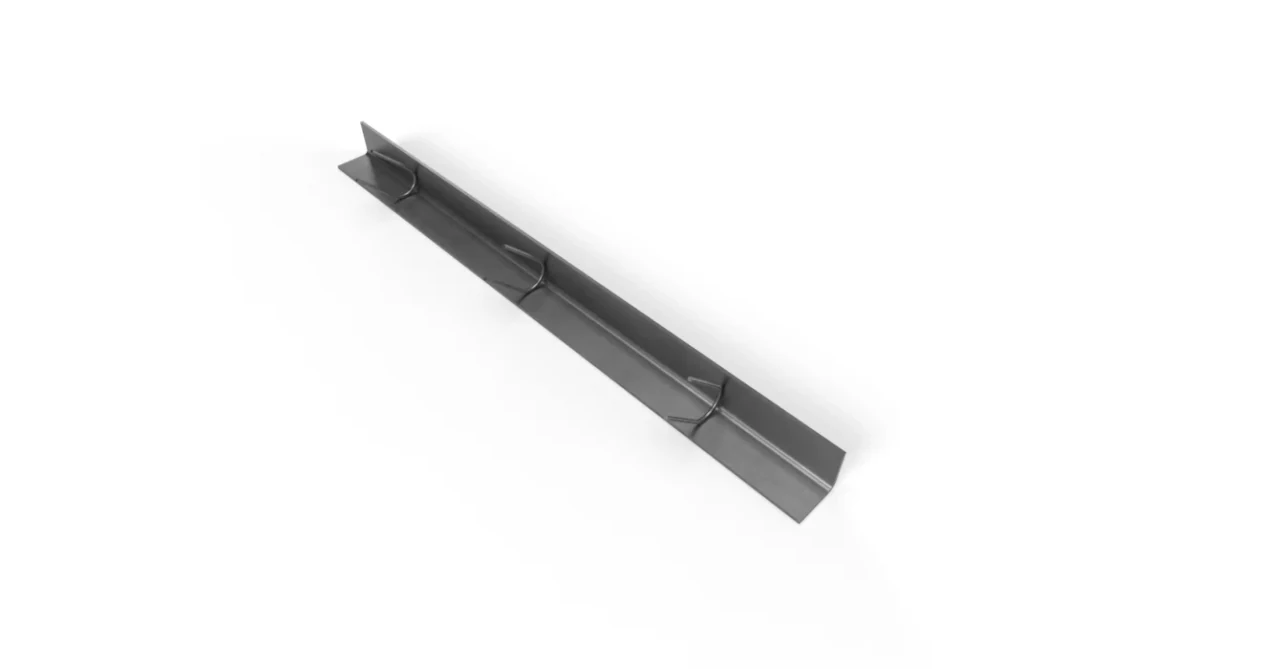

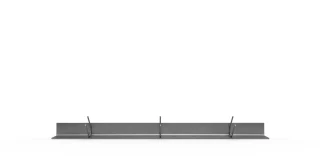

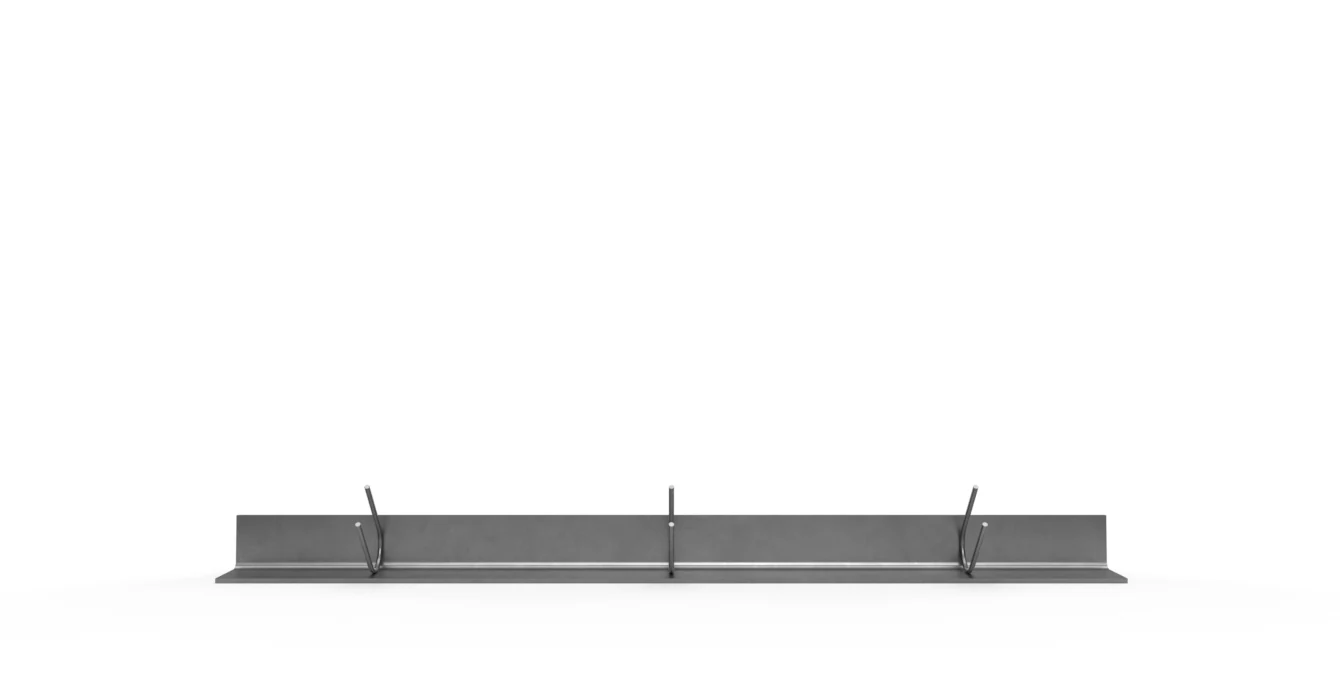

KKW — corner protection strips

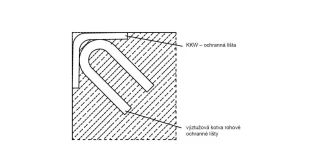

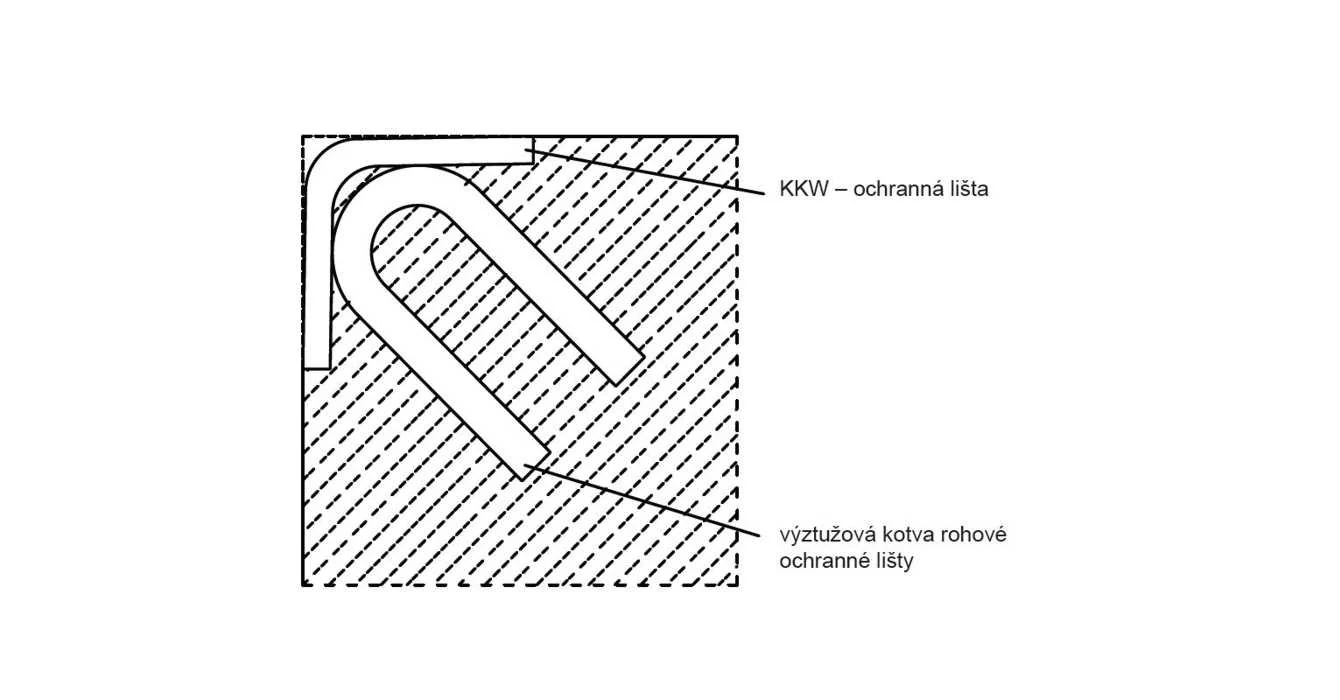

KKW — corner protection strips are delivered as kits to be installed individually Advantages: • The corner protection strip is made with an angle of 92°, which means it is perfectly fitted to the formwork and also provides a very solid and strong connection with concrete. • Waved reinforcement shackles do not compromise the installation, and make work faster. • The shackles ensure optimal anchorage in concrete. • In the case of mass production the prices are negotiable  fv= The corner angle was made of hot-dip galvanised steel St37-2  the anchors were made of reinforcement steel BSt500  A2= the corner angle was made of steel 1.4301 (A2)  the anchors were made of reinforcement steel BSt500

Table of sizes

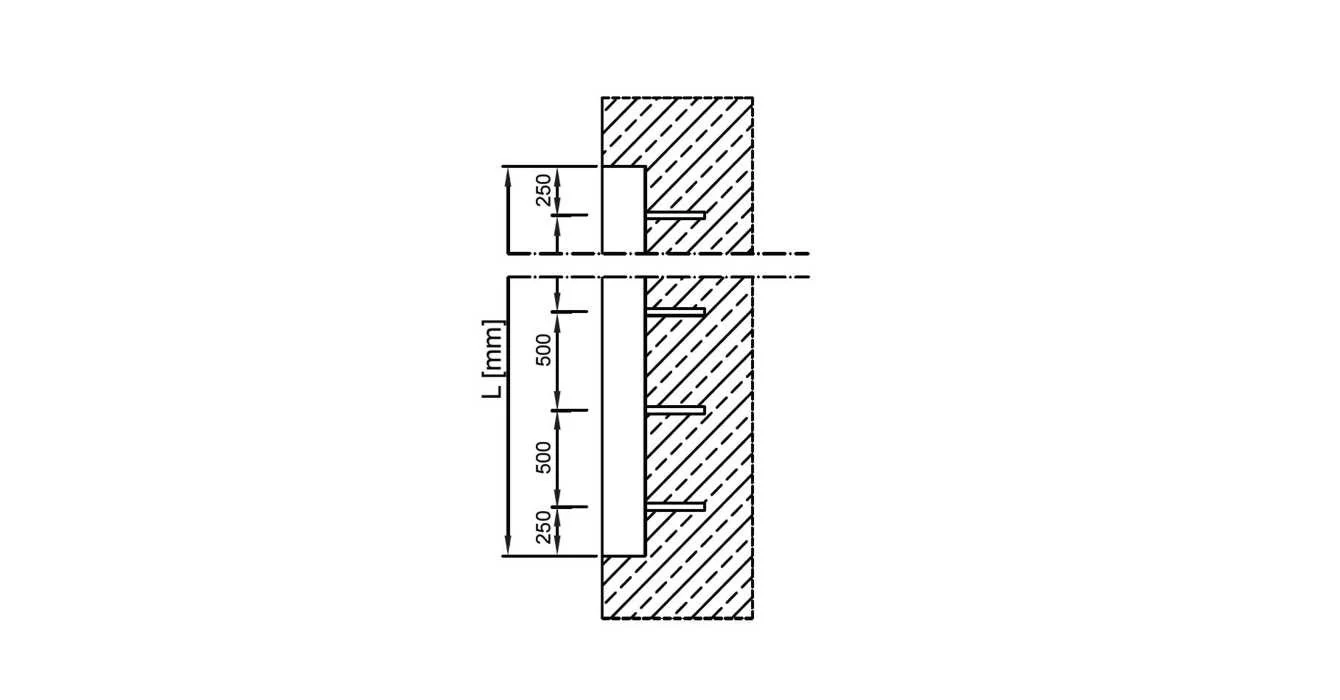

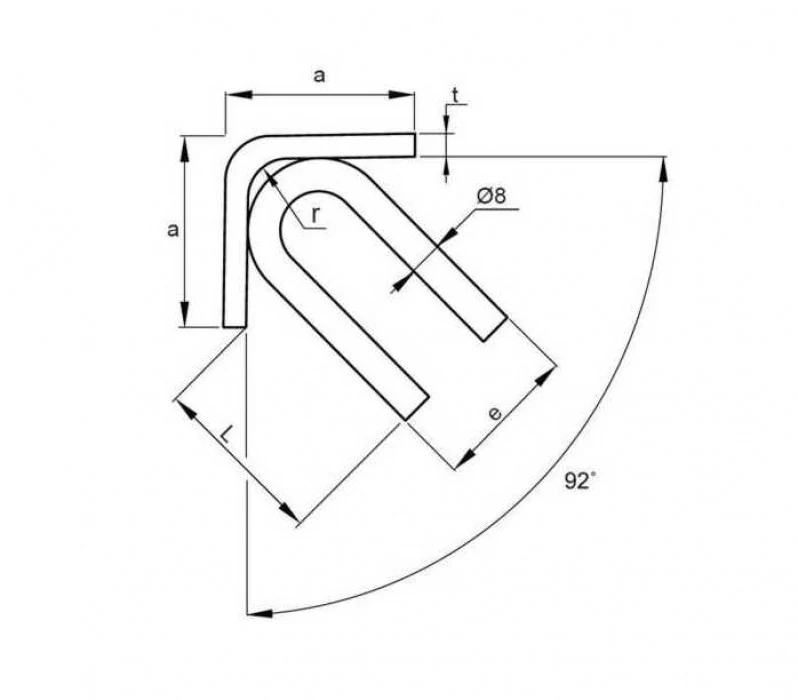

Type profile — a/t — length/number of anchors (mm/mm — mm/pcs)	sizes of anchors
	L × e mm	Radius R mm
KKW 50/4 - 500/2	+75 x 45	6
KKW 50/4 - 750/2
KKW 50/4 - 1000/2
KKW 50/4 - 1500/3
KKW 50/4 - 2000/4
KKW 50/5 - 500/2	+75 x 45	6
KKW 50/5 - 750/2
KKW 50/5 - 1000/2
KKW 50/5 - 1500/3
KKW 50/5 - 2000/4
KKW 80/6 - 500/2	100 x 85	8
KKW 80/6 - 750/2
KKW 80/6 - 1000/2
KKW 80/6 - 1500/3
KKW 80/6 - 2000/4
KKW 100/8 - 500/2	110 x 85	min.12
KKW 100/8 - 750/2
KKW 100/8 - 1000/2
KKW 100/8 - 1500/3
KKW 100/8 - 2000/4

* We reserve the right to make typographical errors. Technical modifications are possible without prior notice.í.
